Hierarchical Models

caskade is a very general simulator building framework, this includes hierarchical models. A hierarchical model is essentially a model within a model, and this can take several forms. Here we will demonstrate the basic patterns of hierarchical models that can be constructed in caskade, from which you should be able to build any simulator.

import caskade as ck
import torch
import matplotlib.pyplot as plt
import numpy as np


class Gaussian(ck.Module):
    def __init__(self, name, x0=None, q=None, phi=None, sigma=None, I0=None):
        super().__init__(name)
        self.x0 = ck.Param("x0", x0, shape=(2,))  # position
        self.q = ck.Param("q", q, shape=())  # axis ratio
        self.phi = ck.Param("phi", phi, shape=())  # orientation
        self.sigma = ck.Param("sigma", sigma, shape=())  # width
        self.I0 = ck.Param("I0", I0, shape=())  # intensity

    @ck.forward
    def _r(self, x, y, x0=None, q=None, phi=None):
        x, y = x - x0[..., 0], y - x0[..., 1]
        s, c = torch.sin(phi), torch.cos(phi)
        x, y = c * x - s * y, s * x + c * y
        return (x**2 + (y * q) ** 2).sqrt()

    @ck.forward
    def brightness(self, x, y, sigma=None, I0=None):
        return I0 * (-self._r(x, y) ** 2 / sigma**2).exp()


X, Y = torch.meshgrid(torch.linspace(-5, 5, 100), torch.linspace(-5, 5, 100), indexing="xy")

Set param values during simulation (live params)

Sometimes you want your simulator to decide, within the simulation, what value a param should have. This is the simplest hierarchical model and can be created using a static param with a value of None, typically called a Live param. By being a static param, caskade will not expect the value as an input to the simulation, the None value tells caskade that it will be set during the simulation (anything else will mean caskade throws an error if you try to do this).

If this all sounds a lot like a pointer param, which caskade already has, you are right. Functionally, these two capabilities are nearly identical. As a rule of thumb, pointer params should be kept very light, either a direct pointer or a simple single (lambda) function to translate/combine a few params, while live params can do more heavy lifting as one can make use of the functions/utilities in the simulator quite easily (and more readably).

class SetLiveParam(ck.Module):
    def __init__(self, gaussian: Gaussian, a: float = 1.0, b: float = 2.0):
        super().__init__()
        self.gaussian = gaussian
        self.gaussian.sigma.to_static(None)  # Live param
        self.a = ck.Param("a", a, dynamic=True)
        self.b = ck.Param("b", b, dynamic=False)
        self.c = ck.Param("c", None, dynamic=False)  # Live param

    @ck.forward
    def determine_c(self, a, b):  # cannot request c here
        self.c = a + b

    @ck.forward
    def determine_sigma(self, a, b, c):
        self.gaussian.sigma = (a + b + c) / 2

    @ck.forward
    def main_sim(self, x, y, a, b):  # cannot request c here

        self.determine_c()

        self.determine_sigma()

        print("within sim c =", self.c.value.item())  # can manually get c after setting value

        return self.gaussian.brightness(x, y) * (a + b)


G = Gaussian("G", x0=[0, 0], q=1, phi=0, I0=1.0)
sim = SetLiveParam(G)
sim.graphviz()

Notice that the live params are greyed out like other static params, but also have a black border like dynamic params since they are somewhere in between the two.

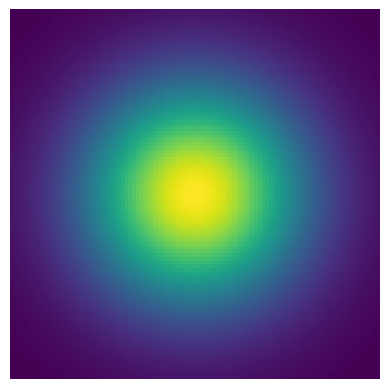

plt.imshow(sim.main_sim(X, Y, sim.get_values()))
plt.axis("off")
plt.show()
print("c is cleared after simulation (should be None):", sim.c.value)
print("Gaussian sigma is cleared after simulation (should be None):", sim.gaussian.sigma.value)

within sim c = 3.0

c is cleared after simulation (should be None): None
Gaussian sigma is cleared after simulation (should be None): None

Batching a subgraph (hierarchical graphical models)

The goal of caskade is to support modular development of code. A quite common pattern is to develop a simulator to handle a single case, then use vmap to batch over many cases. This is great design and makes for very readable implementations that behave intuitively. All is well until you want that batched simulator to operate inside another simulator (see this real world example in caustics). Since caksade handles moving param values around for you, it is hard to call an internal function in a simulator with vmap as it expects all batched values to be passed at call time. This is where caskade’s hierarchical linking comes into play.

In this example, lets use our gaussian blob. The code is designed to create a single gaussian blob, but with a batched simulator we can model multiple simultaneously. So now we will create an image with multiple blobs (similarly, one could model multiple images with a different blob in each).

class MultiBlob(ck.Module):
    def __init__(self, gaussian):
        super().__init__()
        self.hierarchical_link(
            "gauss", gaussian
        )  # note, the name string is how we will reference the module

    @ck.forward
    def brightness(self, x, y, gauss_params, gauss_dims):
        batch_gauss = torch.vmap(self.gauss.brightness, in_dims=(None, None, gauss_dims))
        return batch_gauss(x, y, gauss_params).sum(dim=0)


G = Gaussian("G", q=1.0, phi=0.0, sigma=1.0, I0=1.0)
G.x0 = torch.tensor([[0, 0], [3, 1], [-2, 4], [-3, -3], [1, -4]])  # Batched param
print(f"x0 shape: {G.x0.shape}, x0 batched: {G.x0.batched}, x0 batch shape: {G.x0.batch_shape}")
Blobs = MultiBlob(G)
Blobs.graphviz()

x0 shape: (2,), x0 batched: True, x0 batch shape: (5,)

Notice that there is a box around the part of the graph that is getting batched. This is a common notation for probabilistic graphical models to show that a subsection of the graph is repeated (batched) many times.

params = Blobs.get_values()
print("notice params is still a 1d tensor, so we can use it like normal: ", params.shape)

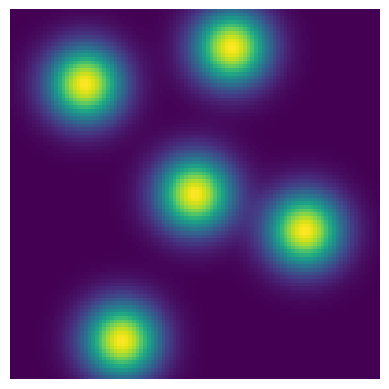

plt.imshow(Blobs.brightness(X, Y, Blobs.get_values()))
plt.axis("off")
plt.show()

notice params is still a 1d tensor, so we can use it like normal:  torch.Size([10])

Yay! Our single Gaussian module has now become a flexible batched Gaussian module. What’s more, this is fully integrated into the caskade system. The model is a function of a 1d vector of values and so we could run MCMC/optimization/etc on it. This also means that we can take advantage of regular caskade batching on top of this. Prepare to have you brain bend a little bit.

# Let's give blobs a sigma parameter to control the gaussian blob it owns
# We make the Blobs sigma a batched param, so now the simulator is batched
#                                                      v: batch size of 6
Blobs.sigma = ck.Param("sigma", torch.linspace(0.5, 2, 6), shape=(), dynamic=True)
G.sigma = Blobs.sigma  # Set the gaussian blob sigma to point to Blobs sigma
params = Blobs.get_values()
print("Now the simulator is batched, the params are batched too: ", params.shape)
Blobs.graphviz()

Now the simulator is batched, the params are batched too:  torch.Size([6, 11])

Notice how params (or modules) in the batched section of the graph can refer to params (or modules) outside the batched section. This is because of some clever aspects of how caskade works. Try not to think about it too much, everything should work intuitively.

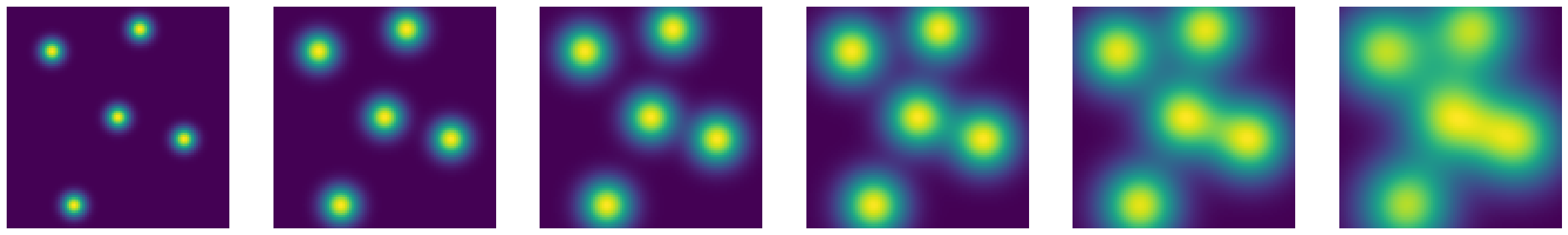

results = torch.vmap(Blobs.brightness, in_dims=(None, None, 0))(X, Y, params)
fig, axarr = plt.subplots(1, params.shape[0], figsize=(5 * params.shape[0], 6))
for ax, res in zip(axarr, results):
    ax.imshow(res)
    ax.axis("off")
plt.show()

This is very neat! But we cheated a bit by batching a param in the main graph. Can we batch the x0 param that is part of the hierarchical graph? Yes, to keep it straight, just think “outside-in”, the first batch dimension will be for the main simulator and the second batch dimension will be for the hierarchical simulator.

G.x0 = np.random.uniform(
    low=-4, high=4, size=(6, 5, 2)
)  # (main sim batch, hierarchical batch, x0 shape)
print(
    "The Gaussian module on its own doesn't know what all the batch dims are for, only in the context of the full simulator do they get their meaning:",
    G.x0.batch_shape,
)
print(
    "The Gaussian module mostly just knows that it should only ever actually see an x0 with this shape:",
    G.x0.shape,
)
params = Blobs.get_values()
print(
    "the 'params' has the same shape as before, just now instead of broadcasting the x0 shape it has a variety of values:",
    params.shape,
)

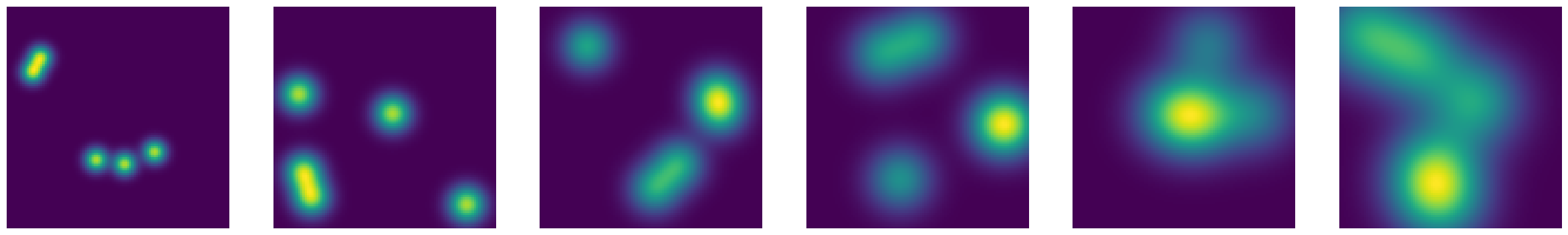

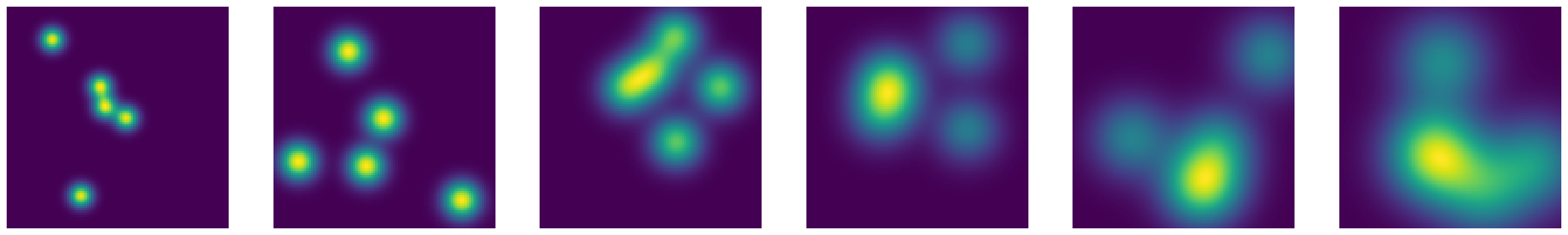

results = torch.vmap(Blobs.brightness, in_dims=(None, None, 0))(X, Y, params)
fig, axarr = plt.subplots(1, params.shape[0], figsize=(5 * params.shape[0], 6))
for ax, res in zip(axarr, results):
    ax.imshow(res)
    ax.axis("off")
plt.show()

The Gaussian module on its own doesn't know what all the batch dims are for, only in the context of the full simulator do they get their meaning: (6, 5)
The Gaussian module mostly just knows that it should only ever actually see an x0 with this shape: (2,)
the 'params' has the same shape as before, just now instead of broadcasting the x0 shape it has a variety of values: torch.Size([6, 11])

Going transdimensional, variable size batches inside the simulator

Sometimes when creating a forward model, we wish to specify population parameters and have the simulator create a sample from that population. It is possible to do this in caskade, though it does present some challenges given the typical workflow which involves specifying the shapes of all params in the simulation ahead of time. To make it work, we will have to construct the inputs to the batched simulator ourselves, inside the main simulator. The main tool that makes this feasible is the dynamic_params tuple, which gives us the order the params are expected in the simulator. Let’s see how this works in a simple example that draws a population of gaussian blobs.

class BlobPopulation(ck.Module):
    def __init__(
        self, gaussian, pop_x0_mean=None, pop_x0_std=None, pop_sigma_low=None, pop_sigma_high=None
    ):
        super().__init__()
        self.hierarchical_link("gauss", gaussian)
        self.pop_x0_mean = ck.Param("pop_x0_mean", pop_x0_mean, shape=(2,))
        self.pop_x0_std = ck.Param("pop_x0_std", pop_x0_std, shape=(2,))
        self.pop_sigma_low = ck.Param("pop_sigma_low", pop_sigma_low, shape=())
        self.pop_sigma_high = ck.Param("pop_sigma_high", pop_sigma_high, shape=())

    @ck.forward
    def brightness(self, x, y, N, pop_x0_mean, pop_x0_std, pop_sigma_low, pop_sigma_high):
        # Randomly draw a number of members in the population
        n = np.random.poisson(N)

        # Sample values for the params
        params = {}
        expand = torch.ones(size=(n, 2))
        params["x0"] = torch.normal(
            mean=pop_x0_mean.unsqueeze(0) * expand, std=pop_x0_std.unsqueeze(0) * expand
        )
        params["sigma"] = torch.rand(n) * (pop_sigma_high - pop_sigma_low) + pop_sigma_low

        # Create params list
        params = list(params[p.name] for p in self.gauss.dynamic_params)
        dims = [0, 0]

        batch_gauss = torch.vmap(self.gauss.brightness, in_dims=(None, None, dims))
        return batch_gauss(x, y, params).sum(dim=0)


G = Gaussian("G", q=1.0, phi=0.0, I0=1.0)
G.x0.to_dynamic([0, 0])  # set dummy values for the params
G.sigma.to_dynamic(0)
G.x0.batch_shape = (1,)  # set filler batch shape
G.sigma.batch_shape = (1,)

BlobPop = BlobPopulation(G, [0, 0], [1, 4], 0.1, 1)
BlobPop.to_dynamic()
BlobPop.graphviz()

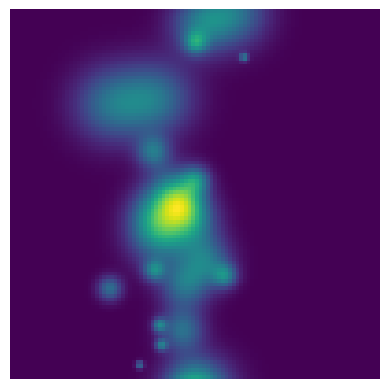

plt.imshow(BlobPop.brightness(X, Y, 20, BlobPop.get_values()))
plt.axis("off")
plt.show()

Now we can play around with the parameters and generate a new population!

BlobPop.pop_x0_std = [3, 1]
BlobPop.pop_sigma_high = 0.5

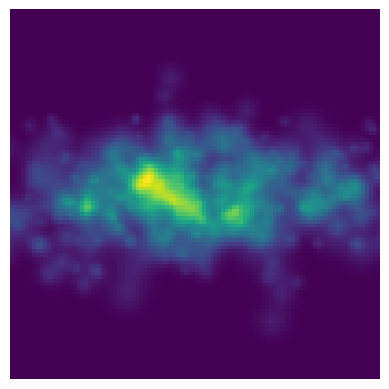

plt.imshow(BlobPop.brightness(X, Y, 500, BlobPop.get_values()))
plt.axis("off")
plt.show()

And with that, you’ve simulated a population of gaussian blobs in an image. The caskade framework makes certain aspects of this kind of modelling very nice, mainly interacting with the population parameters in an intuitive/object-oriented way. Though there are some limitations. For example, such a simulator cannot be batched, since the variable size internal batch would conflict with any attempt to extend the tensors by adding an extra dimension. Further, the fact that you must construct the params yourself (inside the simulator) is somewhat fragile. Swapping out the Gaussian with a different type of blob model (say a Nuker profile) would require different inputs and so would crash the current setup; similarly changing which params of the Gaussian blob are dynamic would also crash the current version since it only generates a population with varying x0 and sigma. Future updates may give a more robust framework for such a model, but for now we left the door open for users to have total flexibility in simulator construction.

As a tip for doing this kind of population modelling yourself, consider putting any metadata you need right alongside the params that need them. When you iterate over the dynamic_params tuple, it gives you access to the param objects and any meta data you wish to store, all in the correct order for passing to the hierarchical graph.

We’re doing it live

class BlobPopulation_v2(ck.Module):
    def __init__(
        self, gaussian, pop_x0_mean=None, pop_x0_std=None, pop_sigma_low=None, pop_sigma_high=None
    ):
        super().__init__()
        self.gauss = gaussian
        self.pop_x0_mean = ck.Param("pop_x0_mean", pop_x0_mean, shape=(2,))
        self.pop_x0_std = ck.Param("pop_x0_std", pop_x0_std, shape=(2,))
        self.pop_sigma_low = ck.Param("pop_sigma_low", pop_sigma_low, shape=())
        self.pop_sigma_high = ck.Param("pop_sigma_high", pop_sigma_high, shape=())

    @ck.forward
    def sub_brightness(self, x, y, x0, sigma):
        self.gauss.x0 = x0
        self.gauss.sigma = sigma
        return self.gauss.brightness(x, y)

    @ck.forward
    def brightness(self, x, y, N, pop_x0_mean, pop_x0_std, pop_sigma_low, pop_sigma_high):
        # Randomly draw a number of members in the population
        n = np.random.poisson(N)

        # Sample values for the params
        expand = torch.ones(size=(n, 2))
        x0 = torch.normal(
            mean=pop_x0_mean.unsqueeze(0) * expand, std=pop_x0_std.unsqueeze(0) * expand
        )
        sigma = torch.rand(n) * (pop_sigma_high - pop_sigma_low) + pop_sigma_low

        batch_gauss = torch.vmap(self.sub_brightness, in_dims=(None, None, 0, 0))
        return batch_gauss(x, y, x0, sigma).sum(dim=0)


G = Gaussian("G", q=1.0, phi=0.0, I0=1.0)
G.x0.to_static()
G.sigma.to_static()

BlobPop = BlobPopulation_v2(G, [0, 0], [1, 4], 0.1, 1)
BlobPop.to_dynamic()
BlobPop.graphviz()

plt.imshow(BlobPop.brightness(X, Y, 20, BlobPop.get_values()))
plt.axis("off")
plt.show()
BlobPop.pop_x0_std = [3, 1]
BlobPop.pop_sigma_high = 0.5

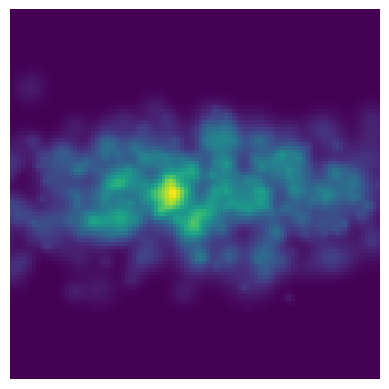

plt.imshow(BlobPop.brightness(X, Y, 500, BlobPop.get_values()))
plt.axis("off")
plt.show()

Whichever form is most intuitive to you should work fine.

Note, you can make a hierarchical link if you like to the gaussian in order to have the graph print with a box around it. This doesn’t affect the live params, but it is helpful for mentally keeping track of what’s going on.

Nesting simulators, going it alone

caskade provides an array of tools for robustly and efficiently building complex simulators, including the hierarchical ones described above. However, sometimes for one reason or another, you might wish that you could make a hierarchical model where caskade won’t try and do anything to help you and just let you control all the simulator interactions. This is a “meta link”, and it is a way to hold one simulator as an attribute of another while having no caskade based interaction between them. The meta linked simulator wont even show up when you print the graph.

class BlobPopulation_v3(ck.Module):
    def __init__(
        self, gaussian, pop_x0_mean=None, pop_x0_std=None, pop_sigma_low=None, pop_sigma_high=None
    ):
        super().__init__()
        self.meta.gauss = gaussian
        self.pop_x0_mean = ck.Param("pop_x0_mean", pop_x0_mean, shape=(2,))
        self.pop_x0_std = ck.Param("pop_x0_std", pop_x0_std, shape=(2,))
        self.pop_sigma_low = ck.Param("pop_sigma_low", pop_sigma_low, shape=())
        self.pop_sigma_high = ck.Param("pop_sigma_high", pop_sigma_high, shape=())

    @ck.forward
    def brightness(self, x, y, N, pop_x0_mean, pop_x0_std, pop_sigma_low, pop_sigma_high):
        # Randomly draw a number of members in the population
        n = np.random.poisson(N)

        # Sample values for the params
        params = {}
        expand = torch.ones(size=(n, 2))
        params["x0"] = torch.normal(
            mean=pop_x0_mean.unsqueeze(0) * expand, std=pop_x0_std.unsqueeze(0) * expand
        )
        params["sigma"] = torch.rand(n) * (pop_sigma_high - pop_sigma_low) + pop_sigma_low

        # Create params list
        params = list(params[p.name] for p in self.meta.gauss.dynamic_params)
        dims = [0, 0]

        batch_gauss = torch.vmap(self.meta.gauss.brightness, in_dims=(None, None, dims))
        return batch_gauss(x, y, params).sum(dim=0)


G = Gaussian("G", q=1.0, phi=0.0, I0=1.0)
G.x0.to_dynamic()
G.sigma.to_dynamic()

BlobPop = BlobPopulation_v3(G, [0, 0], [1, 4], 0.1, 1)
BlobPop.to_dynamic()
BlobPop.graphviz()

plt.imshow(BlobPop.brightness(X, Y, 20, BlobPop.get_values()))
plt.axis("off")
plt.show()
BlobPop.pop_x0_std = [3, 1]
BlobPop.pop_sigma_high = 0.5
plt.imshow(BlobPop.brightness(X, Y, 500, BlobPop.get_values()))
plt.axis("off")
plt.show()

This version functions just as well as the others, so in some sense the choice is one of style and maintainability. If you make use of meta links too much, then you are back to regular object oriented programming and caskade isn’t doing much for you. Still, the option is there if you need it.
